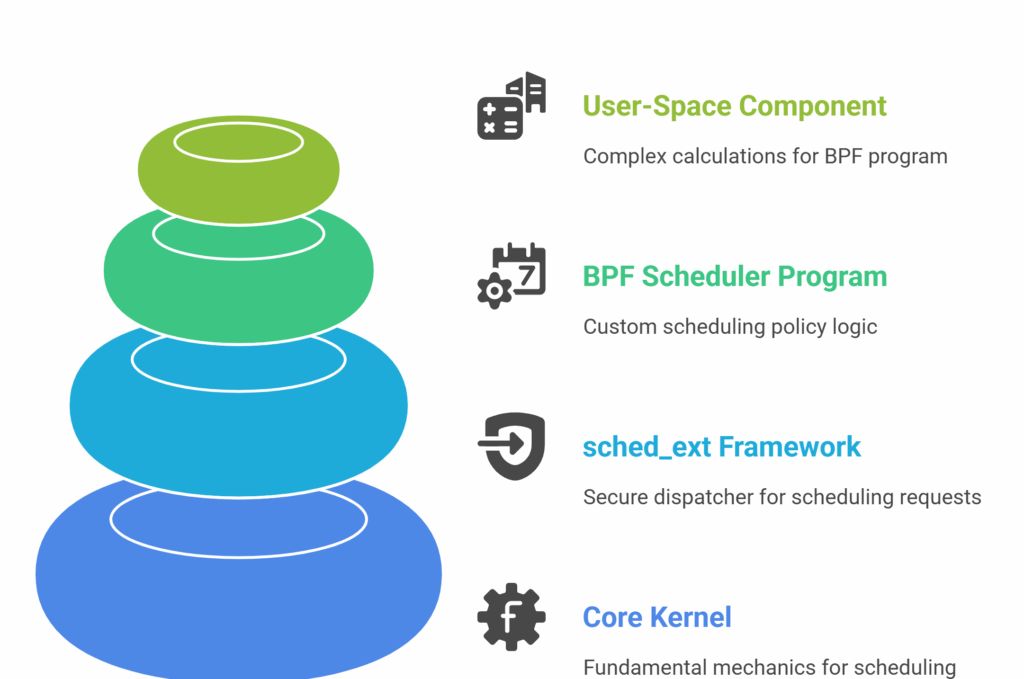

The sched_ext Architecture

1. Core Kernel: Provides the fundamental mechanics: context switching and the sched_class abstraction that allows different schedulers to coexist.
2. sched_ext Framework: The “glue layer” that acts as a secure dispatcher, redirecting scheduling requests to the active BPF program and managing its lifecycle.
3. BPF Scheduler Program: The developer’s custom logic. This is the scheduling policy that decides which task runs next.
4. Optional User-Space Component: For complex algorithms, a user-space daemon can perform heavy calculations and feed results back to the BPF program.

The API: How the Kernel and BPF Schedulers Talk

The conversation is defined by the sched_ext_ops struct, a set of callbacks the BPF program implements. Key hooks include:

• enqueue(): The heart of the scheduler. Called when a task becomes runnable, its logic decides where the task should wait.
• dispatch(): Called when a CPU needs work. The BPF program selects a task from its internal queues and hands it off for execution.
• select_cpu(): Provides a hint to the kernel on the best CPU for a waking task, enabling smart placement.

DSQs: The Mailbox Between BPF and the Kernel

A BPF scheduler hands tasks to the kernel via a Dispatch Queue (DSQ). Think of a DSQ as a standardized mailbox. The BPF program can manage tasks using any complex data structure it wants, but when it’s time to run a task, it places it in a DSQ. The kernel only picks up work from these mailboxes. This brilliantly decouples the scheduler’s internal complexity from the kernel’s execution mechanism.

Expanding the Details – Safety, Hybrids, and Real-World Use Cases

Making It Safe: The BPF Verifier and Kernel Watchdogs

The biggest hurdle for kernel development is the risk of a single bug causing a system-wide crash. sched_ext mitigates this with a two-pronged safety model:

1. Static Analysis (The BPF Verifier): Before a BPF scheduler is even loaded, the kernel’s verifier performs a rigorous static analysis. It mathematically proves that the program is safe by checking for:
   • No crashes: The program cannot use null pointers or access invalid memory.
   • Finite execution: The program is guaranteed to finish and cannot contain unbounded loops that would lock up the kernel.
   • Secure data access: The program can only access an approved set of kernel functions and data structures. If the code fails any of these checks, the kernel refuses to load it.
2. Runtime Protection (The Watchdog): Even a “safe” program can have logical bugs. What if a scheduler starves a critical task or creates a deadlock? sched_ext runs a watchdog timer. If the BPF scheduler fails to make progress or schedule a task within a certain time, the watchdog fires, automatically unloads the faulty BPF scheduler, and safely reverts all its tasks back to the default kernel scheduler (EEVDF). This acts as a crucial fail-safe, ensuring the system always remains stable.

The Hybrid Model in Action: Beyond BPF’s Limits

Let’s consider a practical example of the hybrid kernel/user-space model: a scheduler for a large-scale video transcoding service.

• The User-Space Daemon (written in Go or Rust) could analyze the dependency graph of a video file. It understands that certain frames (I-frames) must be encoded before others (P- and B-frames). It performs this complex analysis and writes high-level priorities into a BPF map shared with the kernel.
• The BPF Scheduler then reads from this map on every scheduling tick. Its job is simple and fast: pick the runnable task with the highest priority assigned by the daemon and dispatch it. It handles the real-time, low-latency decisions, while the daemon handles the complex, high-latency planning.

What Can You Build? A New Ecosystem of Schedulers

This framework unlocks the ability to build highly specialized schedulers that were previously impractical:

• Ultra-Low Latency Schedulers (Gaming & VR): A scheduler like scx_lavd can identify the main game thread and prioritize it aggressively, ensuring it never waits for CPU time, thus reducing frame time variance and eliminating stutters.
• Data Center Schedulers (Cloud & Microservices): A scheduler can be designed to enforce strict CPU isolation between co-located tenants, preventing “noisy neighbor” problems and ensuring Quality of Service (QoS) guarantees are met.
• Energy-Aware Schedulers (Mobile & IoT): On a device with performance and efficiency cores (P- and E-cores), a scheduler can be written to understand the workload. It can move background sync jobs to E-cores while ensuring that when you touch the screen, the UI thread immediately runs on a P-core for maximum responsiveness.
• Throughput Schedulers (Scientific Computing & Data Processing): For batch processing jobs, a scheduler can ignore fairness and focus entirely on maximizing throughput by batching similar tasks together to improve cache utilization.

Summary

For decades, the Linux kernel relied on monolithic, general-purpose CPU schedulers like CFS and EEVDF. While powerful, their “one-size-fits-all” approach created a ceiling on performance for specialized workloads in areas like data centers, gaming, and mobile computing, where the trade-offs between throughput, latency, and power are unique. Developing new in-kernel schedulers was a high-risk, slow process that stifled innovation.

sched_ext fundamentally changes this paradigm. Introduced in Linux 6.12, it is not a new scheduler but an extensible framework that allows developers to write and deploy custom scheduling policies as BPF programs, which can be loaded and swapped at runtime without a reboot.

The architecture cleanly separates duties into layers: the core kernel provides low-level mechanics, the sched_ext framework acts as a secure bridge, and the BPF program implements pure scheduling policy. Communication occurs through a well-defined API (sched_ext_ops) and a “mailbox” system called Dispatch Queues (DSQs), which decouples the scheduler’s internal logic from the kernel.

Crucially, sched_ext is built for safety. The BPF verifier statically proves a scheduler can’t crash the kernel, while a runtime watchdog acts as a fail-safe, automatically reverting to the default scheduler if the custom policy misbehaves. For algorithms too complex for BPF, a hybrid user-space model allows for heavyweight computations, opening the door to schedulers written in languages like Rust or Go.

This framework democratizes scheduler development, enabling a new ecosystem of highly-specialized schedulers tailored for specific outcomes—from ensuring microsecond-level latency for financial services to maximizing battery life on mobile devices. sched_ext marks a pivotal shift for Linux from a monolithic design to a flexible, safe, and workload-aware platform for the future of systems performance.
